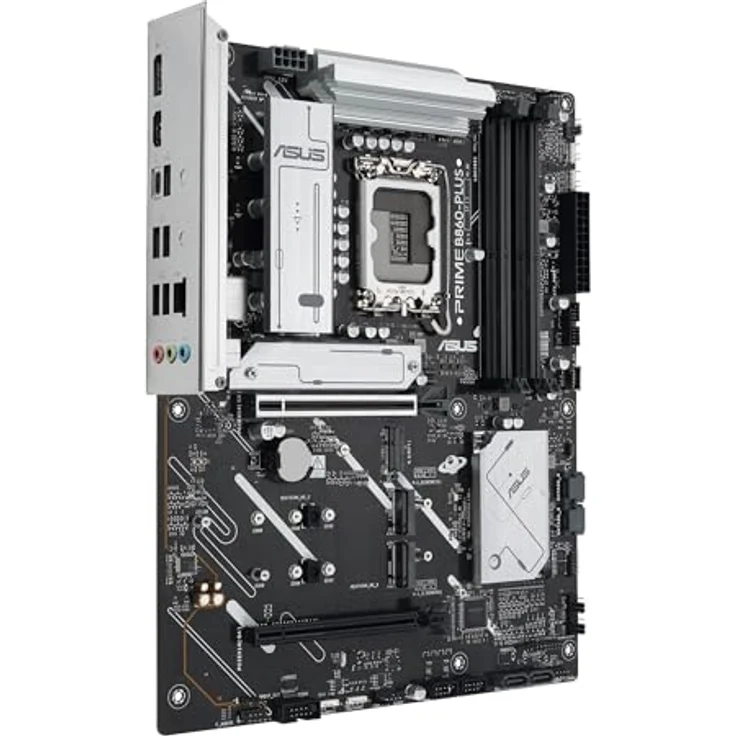

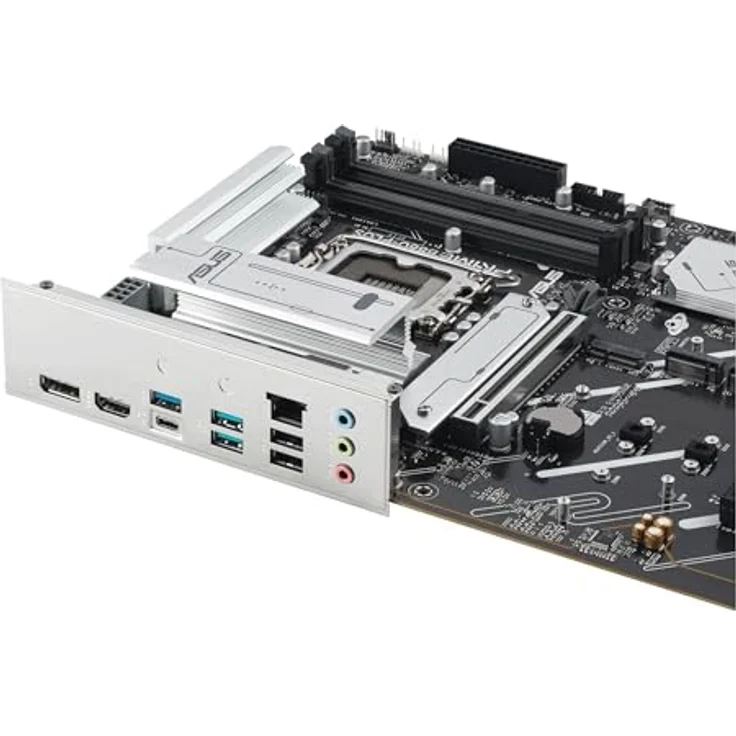

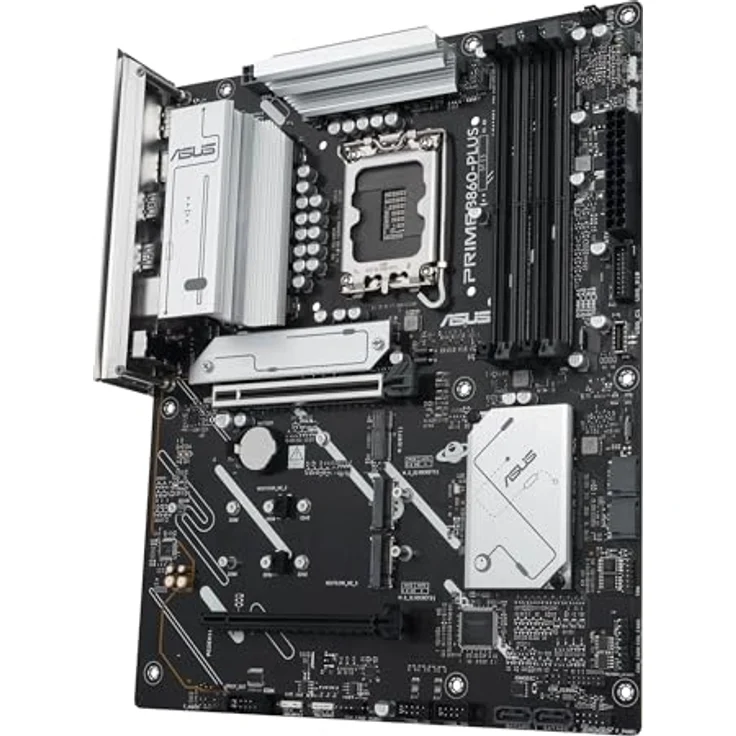

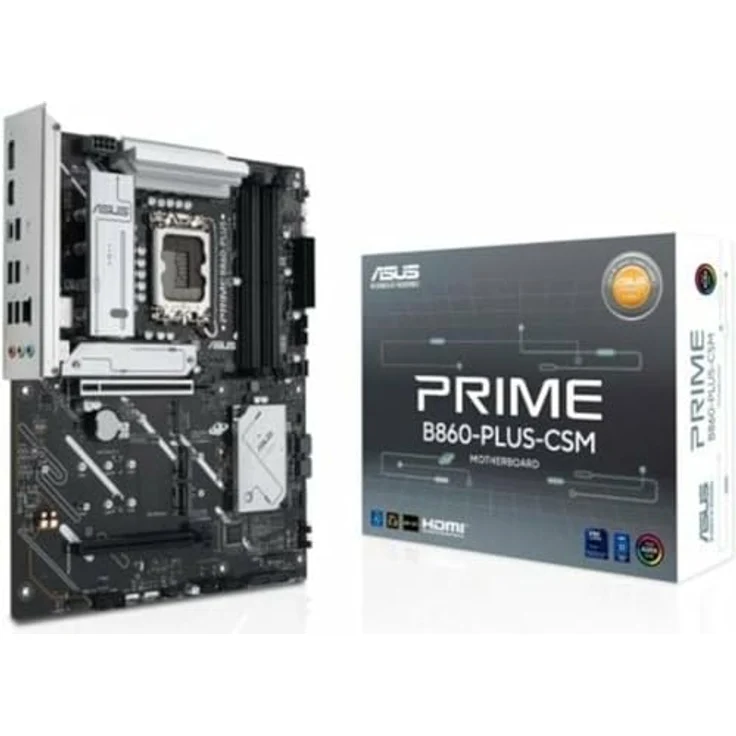

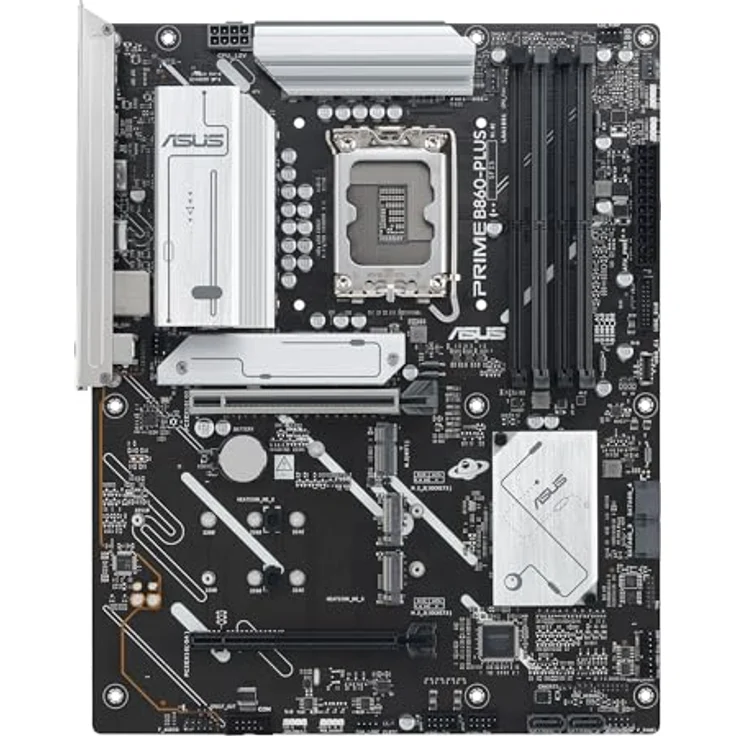

ASUS Prime B860-PLUS-CSM Mainboard Sockel Intel LGA 1851(ATX, DDR5 Speicher, PCIe 5.0 x16 SafeSlot, 3X PCIe 4.0 M.2, HDMI, DisplayPort, USB 20Gbps, USB 5Gbps Typ-C)
Frag die KI
Produktdetails
Produktinformationen
- Produkttyp
- Mainboards
- Im Angebot seit
- 14.01.2025
Generelle Merkmale
- Formfaktor
- ATX
- Kapazität (maximal)
- 256 GB
- Anzahl Arbeitsspeicher-Slots
- 4
- Spezifikation (OC)
- PC5-69328
- Kühlung
- passiv
- Lieferumfang
- Support CD, I/O Shield, 2 x S-ATA 6Gb/s Kabel, M.2 Schrauben
- Farbe
- schwarz
- Ausführung
- ATX
Abmessungen & Gewicht
- Abmessungen
- 305 x 244 mm
Speicher
- Speicherkanäle
- Dual-Channel
- Arbeitsspeicher-Typ
- DDR5
- Arbeitsspeicher maximal
- 8.666 MHz
- S-ATA Geschwindigkeit
- 6 Gbit/s
Sound
- Audio-System
- 7.1 Channel
Technische Details
- Chipsatz
- Intel B860
- BIOS-Speichergröße
- 2x 128Mb UEFI BIOS
- Audio-Kanäle
- 7.1 Kanäle
Anschlüsse
- Anzahl USB-Anschlüsse
- 1 x USB3.2 Gen 2x2, 2 x USB3.2 Gen2, 4 x USB3.2 Gen1, 6 x USB2.0
- Stromanschluss
- 1 x 24-pin ATX, 1 x 8-pin ATX 12V
- Audioanschlüsse
- 3 x Audio Connector
- Netzwerk-Anschlüsse
- 1 x RJ45 (LAN-Port)
- Anschlüsse (intern)
- 2 x Prozessorkühler (4-pin), 4 x Gehäuselüfter (4-pin), 1 x Front Panel Audio Header, 3 x USB3.2 Gen1, 4 x USB2.0, 1 x COM/Ser, 1 x S/PDIF-Ausgang, 1 x TPM, 1 x Thunderbolt 4
- Anschlüsse für Peripherie
- 1 x USB3.2 Gen 2x2, 2 x USB3.2 Gen2, 1 x USB3.2 Gen1, 2 x USB2.0
- Anzahl Video-Anschlüsse
- 1 x Display Port, 1 x HDMI
- RAID-Level
- 0, 1, 5, 10
- RAID
- ja
- Laufwerksanschlüsse
- 4 x S-ATA3 600, 3 x M.2
- Anzahl PCI Express x16 Slots
- 2
- PCIe-Version
- PCIe 5.0, PCIe 4.0
Netzwerk
- LAN-Standards
- 1 x 2.5G Base-T
Prozessor
- CPU-Sockel
- Sockel 1851
- Prozessor-Modell
- Intel Core Ultra 5, Intel Core Ultra 7, Intel Core Ultra 9
- TDP
- 125 Watt
- Prozessor-Codename
- Arrow Lake
- unterstütze Multikernprozessoren
- 24-Core
Produkteigenschaften
- Anzahl RAM-Slots
- 4
